Reverse Brake Applied In Hill Station


Published on Feb 12, 2017

Abstract

 The proposed mechanism is to reverse break using ratchet gear. By reverse locking from the axle.

 Thus the power is directly transmitted to the axle and hence to the wheels. This will considerably reduce the power loss in some occasions when unwanted loss is happening due to the transmission if power from the shaft to the ratchet gear and then to the axle and hence to the wheels.

 So in mechanism the unwanted power loss in the due course of transmission through the gear wheel is reduced.

SCOPE OF THE PROJECT:

A ratchet is a device which is used in vehicles over a few decades and when a vehicle is negotiating a turn, the outside wheel travels a greater distance and turns faster than the inside wheel. The ratchet gear is the device transmitting the power to each wheel, allows one wheel to turn faster than the other.

WORKING OPERATION:

When if you need the reverse brake, applied to the reverse brake button, If the solenoid valve is activated, the compressed air passes to the Single Acting Pneumatic Cylinder. The compressed air activates the pneumatic cylinder and moves the piston rod. If the piston moves forward, then the breaking arrangement activated. The breaking arrangement is used to break the wheel gradually or suddenly due to the piston movement. The breaking speed is varied by adjusting the valve is called “FLOW CONTROL VALVE”.

ADVANTAGES

 Brake cost will be less.

 Free from wear adjustment.

 Less power consumption

 Less skill technicians are sufficient to operate.

 It gives simplified very operation.

 Installation is simplified very much.

 To avoid other burnable interactions viz.… (Diaphragm) is not used.

DISADVANTAGES

 Additional cost required for doing modification

APPLICATION

 For automobile application

 Industrial application

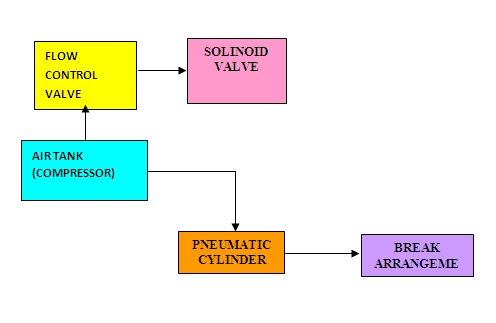

BLOCK DIAGRAM:

Reverse Brake

BLOCK DIAGRAM

Reverse Brake
